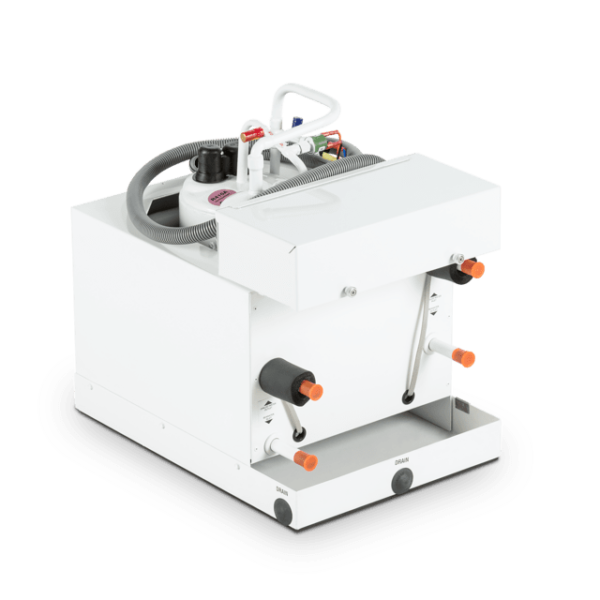

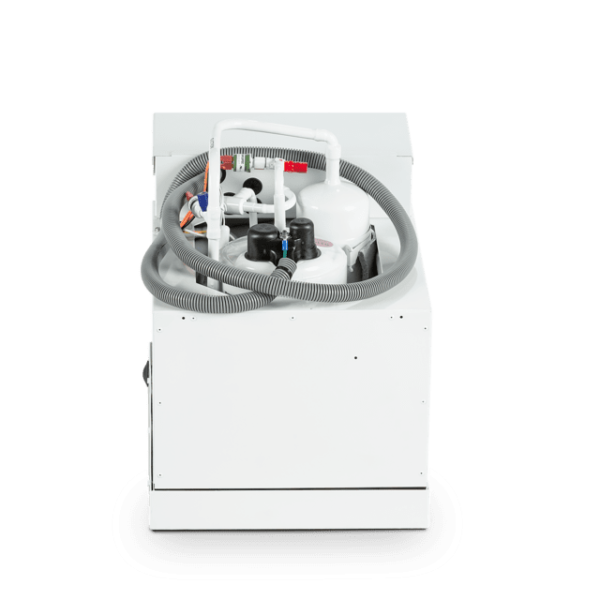

Dometic CHCG CW Module

• Compact footprint for installation flexibility
• Engineered to maximize the performance of R-410A, an environmentally safe refrigerant
• Hot-gas bypass valve maintains heating performance in cold seawater
• Up to six modules can be multiplexed for larger capacities
• Thermodynamically-matched components assure maximum performance
• Spiral-fluted cupronickel condenser coil provides maximum heat transfer and corrosion resistance

General

• SKU number
  9108850289
• Model on label
  CHCG24Z-410 PAN
• US Item Name
  260114012
• Product Description
  Chilled Water Condenser, 24,000 BTU/h, 230V

Dimensions

• Dimensions product depth, [“]
  17 1/2
• Dimensions product height, [“]
  19
• Dimensions product width, [“]
  24 1/2
• Net weight, [lbs]
  91.50

Electrical

• Input voltage (AC), [V]
  230
• Input frequency, [Hz]
  60
• Starting current – max, [A]
  68
• Required AC circuit protection min, [A]
  23
• Required AC circuit protection max, [A]
  40

Performance

• Refrigerant, type
  R410A
• Cooling capacity (ISO 5151), [W]
  7033.71
• Current consumption max cooling, [A]
  9.5
• Current consumption max heating, [A]
  12.1
